Photometry and Period estimation of SX Phoenicis type of star: BL Cam, AE UMa, KZ Hya and V* RR Lyr

we did the ccd photometry of SX Phoenicis type of star BL Cam and AE. The data were collected for BL Cam (three days) and AE Uma (two days) using 132 mm APO at photometric R band from dates 14 Jan26 to 18Jan26.

SX Phoenicis variables are short-period pulsating variable stars characterized by pulsation periods ranging from approximately 0.03 to 0.09 days.  They are spectral class of A2 to F5, with effective temperatures around 7500 K, and are distinguished by their low metallicity and position in the instability strip of the Hertzsprung-Russell diagram, near or on the zero-age main sequence.

SX Phoenicis variables are the metal-poor, lower-luminosity and shows the period luminosity relation.

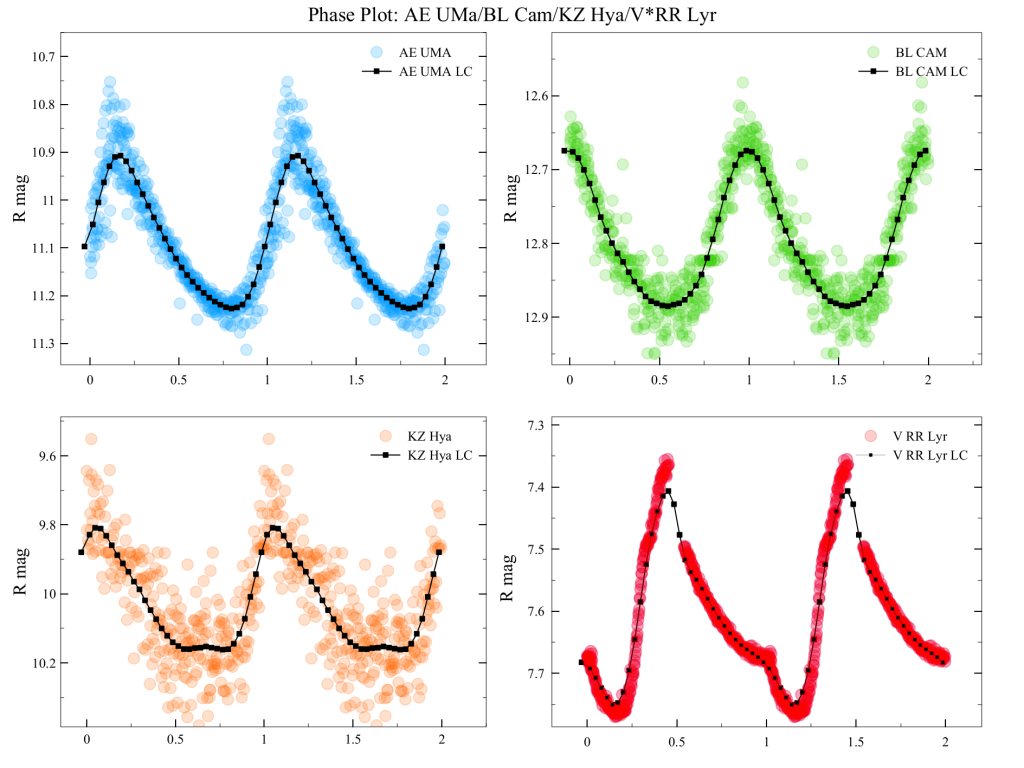

The images were photometrically reduced in data sets using Tycho and ATLAS catalogue. The light curves were analysed using Peranso (Fourier Analysis of Light Curves, Harris).

The spectral frequency domain shows the periods of BL Cam and AE UMa 0.039097 days and 0.086037 days respectively.

Photometry: WASP-36b

Exo-Planet, Class confirmed:
WASP-36b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.12 Anaconda Package
Instrument:
CCD: SX35 (KAF11001M)
FILTERS: Luminance
TELESCOPE: RC14, 1877.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observer:
Cepheid Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.1347 ± 0.0028 (expected: 0.1368 ± 0.0006)
O-C = -0.99 ± 0.95 minutes

Diagnostics
Transit SNR = 24.24 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = -0.73σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.271 (good:≤0.301, acceptable:≤0.367)
(no systematics in the data)
Shapiro = 0.007 (good:≤0.028, acceptable:≤0.046)
(few or no outliers in the data)

Photometry: Qatar-9b

Exo-Planet, Class confirmed:
Qatar-9b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.12 Anaconda Package
Instrument:
CCD: SX35 (KAF11001M)
FILTERS: Luminance
TELESCOPE: RC14, 1877.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observer:
Cepheid Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.1575 ± 0.0066 (expected: 0.1489 ± 0.0009)
O-C = 0.4 ± 1.44 minutes

Diagnostics
Transit SNR = 11.98 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = 1.29σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.203 (good:≤0.315, acceptable:≤0.385)
(no systematics in the data)
Shapiro = 0.013 (good:≤0.032, acceptable:≤0.052)
(few or no outliers in the data)

Photometry: TOI-2570b

Exo-Planet, Class confirmed:
TOI-2570b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.12 Anaconda Package
Instrument:
CCD: SX35 (KAF11001M)
FILTERS: Luminance
TELESCOPE: RC14, 1877.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observer:
Cepheid Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.1196 ± 0.0027 (expected: 0.11419 ± 0.001138)
O-C = -0.82 ± 2.74 minutes

Diagnostics
Transit SNR = 22.2 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = 1.85σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.349 (good:≤0.309, acceptable:≤0.377)
(weak systematics in the data)
Shapiro = 0.035 (good:≤0.03, acceptable:≤0.05)
(some outliers in the data)

Photometry: TOI-3688Ab

Exo-Planet, Class confirmed:
TOI-3688Ab
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.12 Anaconda Package
Instrument:
CCD: SX35 (KAF11001M)
FILTERS: Luminance
TELESCOPE: RC14, 1877.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observer:
Cepheid Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.0937 ± 0.0074 (expected: 0.09219 ± 0.00233)
O-C = 5.04 ± 1.44 minutes

Diagnostics
Transit SNR = 6.34 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = 0.19σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.324 (good:≤0.278, acceptable:≤0.339)
(weak systematics in the data)
Shapiro = 0.012 (good:≤0.024, acceptable:≤0.038)
(few or no outliers in the data)

Photometry: TOI-3629b

Exo-Planet, Class confirmed:
TOI-3629b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.12 Anaconda Package
Instrument:
CCD: SX35 (KAF11001M)
FILTERS: Luminance
TELESCOPE: RC14, 1877.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observer:
Cepheid Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.128 ± 0.012 (expected: 0.126 ± 0.002)
O-C = 7.96 ± 2.88 minutes

Diagnostics
Transit SNR = 5.34 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = 0.16σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
Auto-Correlation = 0.235 (good:≤0.3, acceptable:≤0.366)
(no systematics in the data)
Shapiro = 0.005 (good:≤0.028, acceptable:≤0.046)
(few or no outliers in the data)

Photometry: HAT-P-24b

Exo-Planet, Class confirmed:
HAT-P-24b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.9
Instrument:
CCD: Atik383L+ (KAF8300M)
FILTERS: Luminance
TELESCOPE: RC14, 1938.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observers:
Cepheid Observatory India, VS Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.0911 ± 0.0056 (expected: 0.097 ± 0.0012)
O-C = -1.05 ± 2.16 minutes
Diagnostics
Transit SNR = 8.14 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = -1.03σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.199 (good:≤0.264, acceptable:≤0.321)
(no systematics in the data)
Shapiro = 0.009 (good:≤0.021, acceptable:≤0.033)
(few or no outliers in the data)

Photometry: KPS-1b

Exo-Planet, Class confirmed:
KPS-1b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.9
Instrument:
CCD: Atik383L+ (KAF8300M)
FILTERS: Luminance
TELESCOPE: RC14, 1938.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observers:
Cepheid Observatory India, VS Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.107 ± 0.01 (expected: 0.114 ± 0.004)
O-C = -0.45 ± 4.03 minutes
Diagnostics
Transit SNR = 5.39 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = -0.65σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.217 (good:≤0.296, acceptable:≤0.362)
(no systematics in the data)
Shapiro = 0.011 (good:≤0.027, acceptable:≤0.045)
(few or no outliers in the data)

Photometry: TOI-2842b

Exo-Planet, Class confirmed:
TOI-2842b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.9
Instrument:
CCD: Atik383L+ (KAF8300M)
FILTERS: Luminance
TELESCOPE: RC14, 1938.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observers:
Cepheid Observatory India, VS Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.0924 ± 0.0034 (expected: 0.0931 ± 0.0012)
O-C = 2.14 ± 2.45 minutes
Diagnostics
Transit SNR = 13.68 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = -0.18σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.188 (good:≤0.297, acceptable:≤0.363)
(no systematics in the data)
Shapiro = 0.015 (good:≤0.028, acceptable:≤0.045)
(few or no outliers in the data)

Photometry: HAT-P-9b

Photometry: HAT-P-9b
Exo-Planet, Class confirmed:
HAT-P-9b
Imaged/Calibration/Image solve:
PRiSM v11
Photometry and Data Fitting:
HOPS 3.1.2/Platform: Python 3.9
Instrument:
CCD: Atik383L+ (KAF8300M)
FILTERS: Luminance
TELESCOPE: RC14, 1938.0 mm
Site:
ORIGIN: Cepheid Observatory India
SITELAT: +24:55:00:00
SITELONG:+75:33:58:99
Observers:
Cepheid Observatory India, VS Observatory India
Remark:
Sky Clear
Results
Rp/Rs = 0.1041 ± 0.0041 (expected: 0.107 ± 0.0009)
O-C = -1.35 ± 1.24 minutes
Diagnostics
Transit SNR = 12.73 (good:≥5, acceptable:≥3)
(strong detection of the transit)
Rp/Rs drift = -0.69σ (good:≤2, acceptable:≤3)
(Rp/Rs in good agreement with the literature)
AutoCorrelation = 0.195 (good:≤0.252, acceptable:≤0.306)
(no systematics in the data)
Shapiro = 0.015 (good:≤0.019, acceptable:≤0.03)
(few or no outliers in the data)
